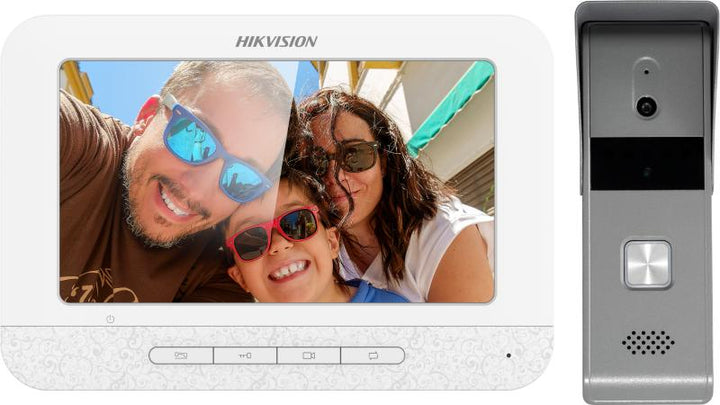

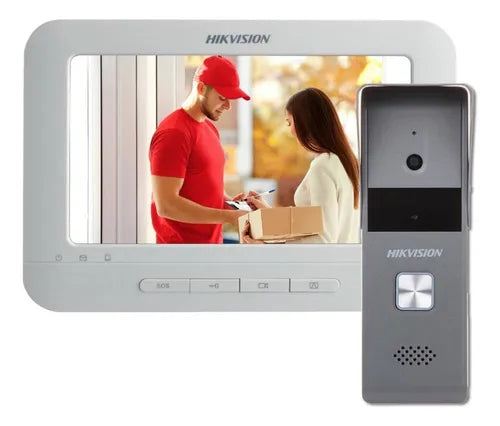

DS-KIS203T Villa Analog Kit

PKR 24,500 PKR 17,499 SAVE PKR 7,001
In Stock Pre order Out of stock
  • Camera Quality: 1080p Full HD resolution with a 1/2.7" CMOS sensor for clear visuals.
  • Wide View: 66.2° horizontal and 37.2° vertical field of view for better coverage.
  • Two-Way Audio: Built-in microphone and speaker with noise suppression and echo cancellation.
  • Display: 7-inch colorful TFT LCD with 800×480 resolution for sharp indoor monitoring.
  • Operation: Physical button control for quick and easy use.
  • Durability: IP65-rated outdoor unit, weather-resistant and reliable.
  • Power: 12V DC with low power consumption (≤5W).
  • Operating Range: Functions effectively between -10°C to 55°C and 10%–90% humidity.
  • Package Includes: Indoor and outdoor stations with all necessary accessories.

Overview

Specifications

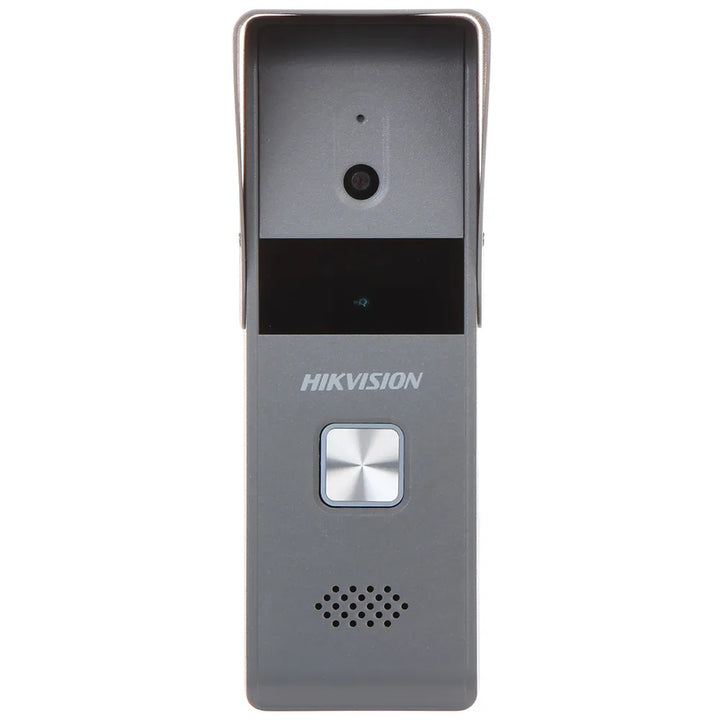

Door station/Video parameters

  • Resolution
  • 1920 × 1080

Stream resolution: 960 × 576

  • Lens1/2.7" CMOS
  • FOVHorizontal: 66.2°，Vertical: 37.2°

Door station/Audio parameters

  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker

Door station/Device interfaces

  • I/O output1 relay output
  • Four-wire1-ch video input, 1-ch audio input/output, 1-ch power supply, 1-ch grounding

Door station/General

  • Power supply12 VDC
  • Power consumptionMax. 5W
  • Working temperature-10° C to + 55° C (14° F to 131° F)
  • Working humidity10% to 90%
  • Dimensions128 mm × 42 mm × 24.8 mm
  • Protective levelIP65

Indoor station/Display parameters

  • Operation methodPhysical button
  • Type7-inch colorful TFT LCD
  • Resolution800 × 480

Indoor station/Audio parameters

  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Audio qualityNoise suppression and echo cancellation

Indoor station/General

  • Power supply12 VDC
  • Power consumption≤5 W
  • Working temperature-10° C to + 55° C (14° F to 131° F)
  • Working humidity10% to 90%
  • Dimensions (W × H × D)195.8 mm × 132.8 mm × 18.39 mm (7.7" × 5.2" ×0.7")
