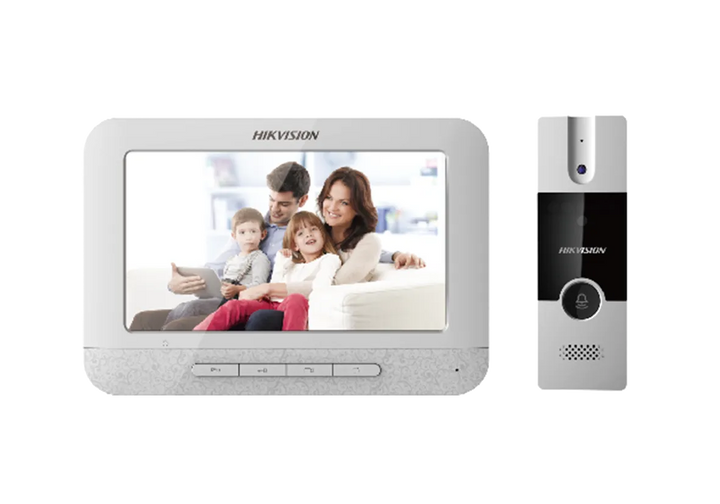

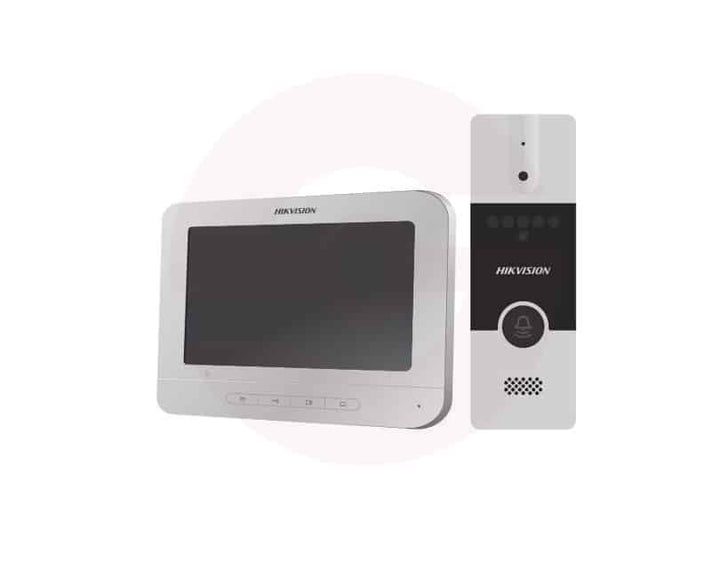

DS-KIS204T Villa Analog Kit

PKR 22,487 PKR 18,499 SAVE PKR 3,988
In Stock Pre order Out of stock
  • High-Resolution Video: 1080p Full HD clarity with 1/2.7" CMOS sensor and a wide FOV (Horizontal: 66.2°, Vertical: 37.2°).
  • Two-Way Communication: Built-in omnidirectional microphone and loudspeaker for clear audio.
  • Indoor Display: 7-inch colorful TFT LCD (800×480) with physical button control.
  • Reliable Power: Operates on 12V DC with low power consumption (≤5W).
  • Durable Design: IP65-rated door station, built for all weather conditions.
  • Smart Connectivity: 4-wire interface supports video, audio, power, and grounding.
  • Temperature Range: Works efficiently from -10°C to +55°C, with 10–90% humidity tolerance.
  • Compact Size: Door station – 128×42×24.8 mm; Indoor station – 195.8×132.8×18.39 mm.

Overview

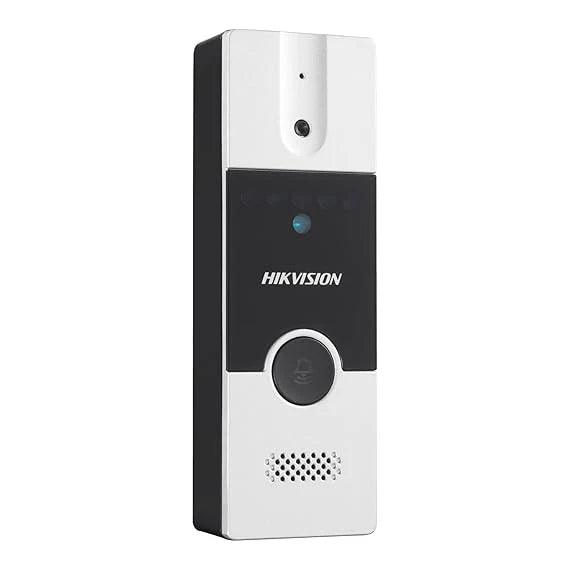

Door station/Video parameters

·        Resolution

o   1920 × 1080

o   Stream resolution: 960 × 576

·        Lens1/2.7" CMOS

·        FOVHorizontal: 66.2°Vertical: 37.2°

Door station/Audio parameters

·        Audio inputBuilt-in omnidirectional microphone

·        Audio outputBuilt-in loudspeaker

Door station/Device interfaces

·        I/O output1 relay output

·        Four-wire1 four-wire interface (1-ch video input, 1-ch audio input/output, 1-ch power,supply, 1-ch grounding)

Door station/General

·        Power supply12 VDC

·        Power consumptionMax. 5W

·        Working temperature-10° C to + 55° C (14° F to 131° F)

·        Working humidity10% to 90%

·        Dimensions128 mm × 42 mm × 24.8 mm

Indoor station/Display parameters

·        Operation methodPhysical button

·        Type7-inch colorful TFT LCD

·        Resolution800 × 480

Indoor station/Audio parameters

·        Audio inputBuilt-in omnidirectional microphone

·        Audio outputBuilt-in loudspeaker

·        Audio qualityNoise suppression and echo cancellation

Indoor station/General

·        Power supply12 VDC

·        Power consumption≤5 W

·        Working temperature-10° C to + 55° C (14° F to 131° F)

·        Working humidity10% to 90%

·        Dimensions (W × H × D)195.8 mm × 132.8 mm × 18.39 mm (7.7" × 5.2" ×0.7")
