EZVIZ CB8 Battery-Powered Pan & Tilt Wi-Fi Camera
EZVIZ CB8
No blind spot, no hard setup
| Specifications | |
|---|---|
| Model | CS-CB8 (3MP) |
| Camera | |
| Image Sensor | 1/2.8” 3-Megapixel Progressive Scan CMOS Sensor |
| Minimum Illumination | 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR (Data is obtained from EZVIZ laboratories) |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm @ F1.6 Viewing angle: 100°(Diagonal), 83°(Horizontal), 44°(Vertical) |
| PT Angle | Pan: 340°, Tilt: 65° |
| Day & Night | IR-Cut filter with auto-switching |
| DNR | 3D DNR |
| Night Vision | Up to 49 ft / 15 m |
| Video & Audio | |
| Max. Resolution | 2304 × 1296 |
| Frame Rate | 15fps. Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Ultra-HD; Hi-Def; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 1.5 Mbps |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64 / 128 bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Minimum Network Requirement | 4 Mbps |
| Function | |
| Smart Alarm | Smart Human Motion Detection |
| Two-way Talk | Supports |
| General Function | Anti-Flicker, Heart Beat, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD Card (Up to 256 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
| General | |
| Operating Conditions | -20 °C to 50 °C (-4 °F to 122 °F ), humidity 95% or less (Non-condensing) |
| IP Grade | Weatherproof Design |
| Power Supply | DC 5V / 2A (Adapter needs to be purchased separately) |
| Power Consumption | Max. 10W |
| Battery Capacity | 10400 mAh |
| Product Dimensions | 183 × 116 × 166 mm (7.20 × 4.57 × 6.52 inch) |
| Packaging Dimensions | 216 × 145 × 203 mm (8.50 × 5.71 × 7.99 inch) |
| Weight | Net: 803 g (28.32 oz) With package: 1060 g (37.39 oz) |
| In the box | |
| In the box | - CB8 2K Camera |
| - Drilling Template | |
| - USB Cable | |
| - Screw Kit | |
| - Quick Installation Guide | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / FCC / WEEE / RoHS / REACH / UL |
5 Reasons To Be Our Customer:
 |
Exceptional Support Our friendly support staff are available all the time to help customers with any questions or concerns. We want our products to deliver the most joy and value with zero hassle. That’s why we insist on being available to assist when the need arises. |
|---|---|
 |
15-Day Easy Return & Refund We are so confident that you will love our products that we offer a 15-day return & refund period. Please read our Return & Refund policy and If you are eligible you can ask for a replacement or refund. |
 |
Quality and Affordable We believe in combining both quality and affordability in our products. There’s no reason to pay exorbitant prices when our products do more for less. You won't find better price to quality ratio. |
 |
Unbeatable Price - Years of experiences gives us uniqe position to work directly with factories to ensure quality control and the best price possible. |
 |
Secure, Easy Ordering - Orders can be placed online using either a credit/debit card or other payment gateways like Jazz Cash & Easy Paisa. All transactions are SSL-secured and guarantee your privacy. |
Customer Reviews
A good choice for security, great result

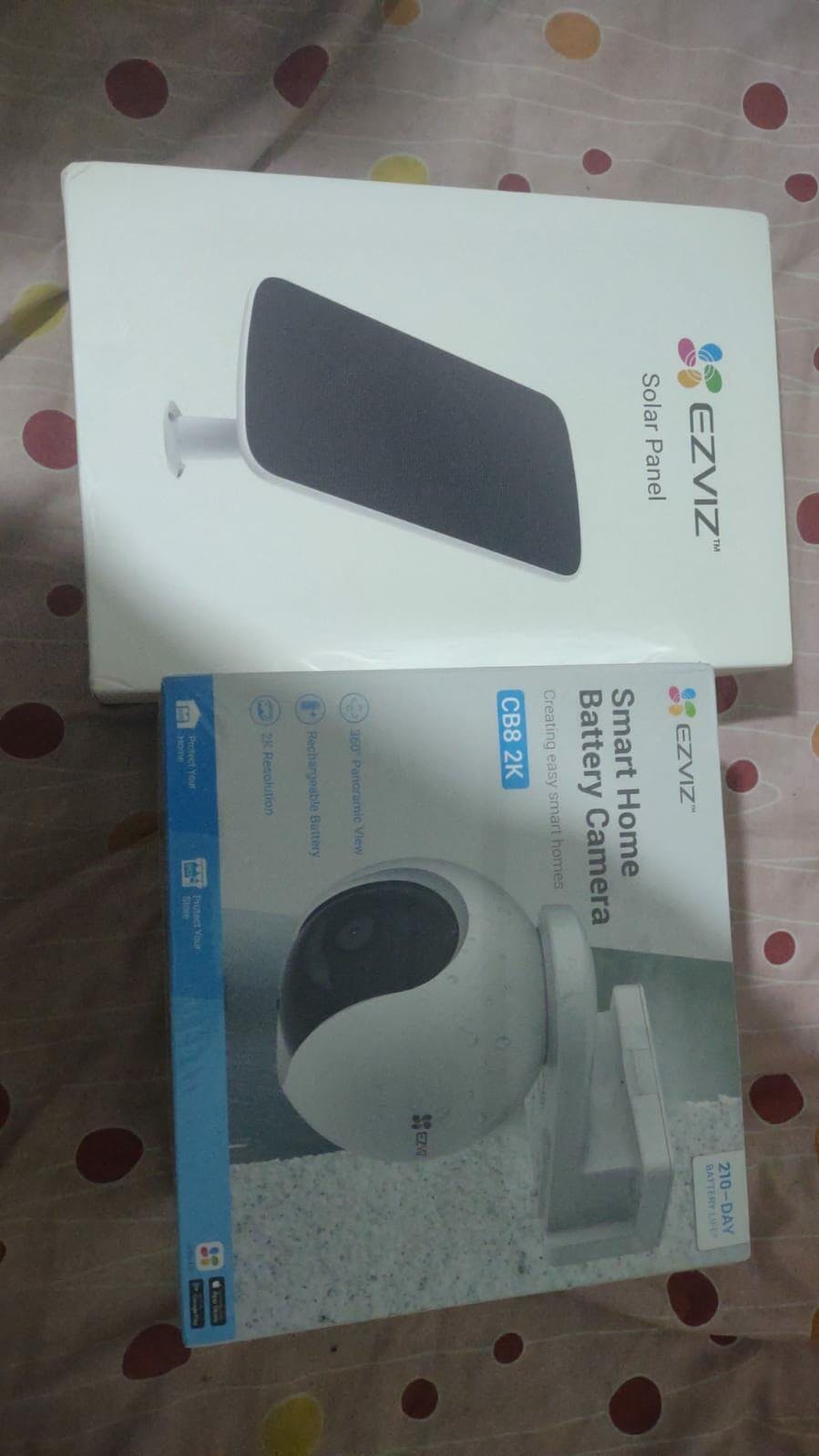

I was searching for off grid surveillance system, and i found this camera for my Farm security along with ezviz solar panel. Working great. Thanks ezviz.
