EZVIZ CP1 Pro Type-C Pan & Tilt Smart Home Camera
EZVIZ CP1 Pro
Smarter vision for a safer home
| Specifications | |
|---|---|
| Model | CS-CP1-R105-1L2WF |
| Camera | |
| Image sensor | 1/3" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm @ F1.6, view angle: 90°(Diagonal), 80° (Horizontal), 43°(Vertical) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto switch |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Compression | |
| Video Compression | H.264/H.265 |
| Video Bit Rate | Adaptive bit rate. |
| Image | |
| Max. Resolution | 1920 × 1080 |
| Frame Rate | Max:25fps; Self-Adaptive during network transmission |
| Network | |
| Smart Alarm | Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection |
| Wi-Fi Pairing | AP paring |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Interface | |
| Storage | Micro SD card slot (Max. 512G) |
| Power | TYPE-C |
| Wired Network | Not support |
| Wi-Fi | |
| Standard | IEEE802.11a, 802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4G: 2400~2483.5MHz |
| Channel Bandwidth | Supports 20MHz |
| Security | WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b 11 Mbps, 11g 54 Mbps, 11n: 72 Mbps |
| Output Power(EIRP) | 19 dBm |
| Antenna Gain | 1.9 dBi |
| General | |
| Operating Conditions | -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing) |
| Power Supply | DC 5V/1A |
| Power Consumption | MAX. 5W |
| IR Range | MAX. 10 meters(32.81ft) |
| Dimensions | 88mm x 88.2 mm x 119mm (3.46” x 3.47” x 4.69”) |
| Packaging Dimensions | 103mm x 103mm x 168mm (4.06” x 4.06” x 6.61”) |
| Bare Weight | 222 g (0.49 lb) |
| In the box | |
| In the box | - CP1 Pro Camera |
| - Power Adapter | |
| - Power Cable | |
| - Drill Template | |
| - Mounting Plate | |
| - Screw Kit | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / UL / WEEE / REACH / RoHS / UKCA |
5 Reasons To Be Our Customer:
 |
Exceptional Support Our friendly support staff are available all the time to help customers with any questions or concerns. We want our products to deliver the most joy and value with zero hassle. That’s why we insist on being available to assist when the need arises. |
|---|---|
 |
15-Day Easy Return & Refund We are so confident that you will love our products that we offer a 15-day return & refund period. Please read our Return & Refund policy and If you are eligible you can ask for a replacement or refund. |
 |
Quality and Affordable We believe in combining both quality and affordability in our products. There’s no reason to pay exorbitant prices when our products do more for less. You won't find better price to quality ratio. |
 |
Unbeatable Price - Years of experiences gives us uniqe position to work directly with factories to ensure quality control and the best price possible. |
 |
Secure, Easy Ordering - Orders can be placed online using either a credit/debit card or other payment gateways like Jazz Cash & Easy Paisa. All transactions are SSL-secured and guarantee your privacy. |
Customer Reviews
Ordered this camera recently. Received quickly. I must say that the customer service is great. Product is good as expected. Build quality is rigid. Results are surprisingly good.
Thanks!
tenda & Mi is better from Ezviz , only desktop pc app advantige to ezviz
It's perfect and useful device. I think it is need of everyone and user friendly. Moreover I was surprised to receive the camera on very next day of order submission.
Ezviz smart home camera is a must to have product in Ur home for additional security and ease of mind. A good investment in securing Ur home. And very much user friendly. I was told to buy imo ranger smart camera but I took the risk n bought this new product and let's just say money well spent

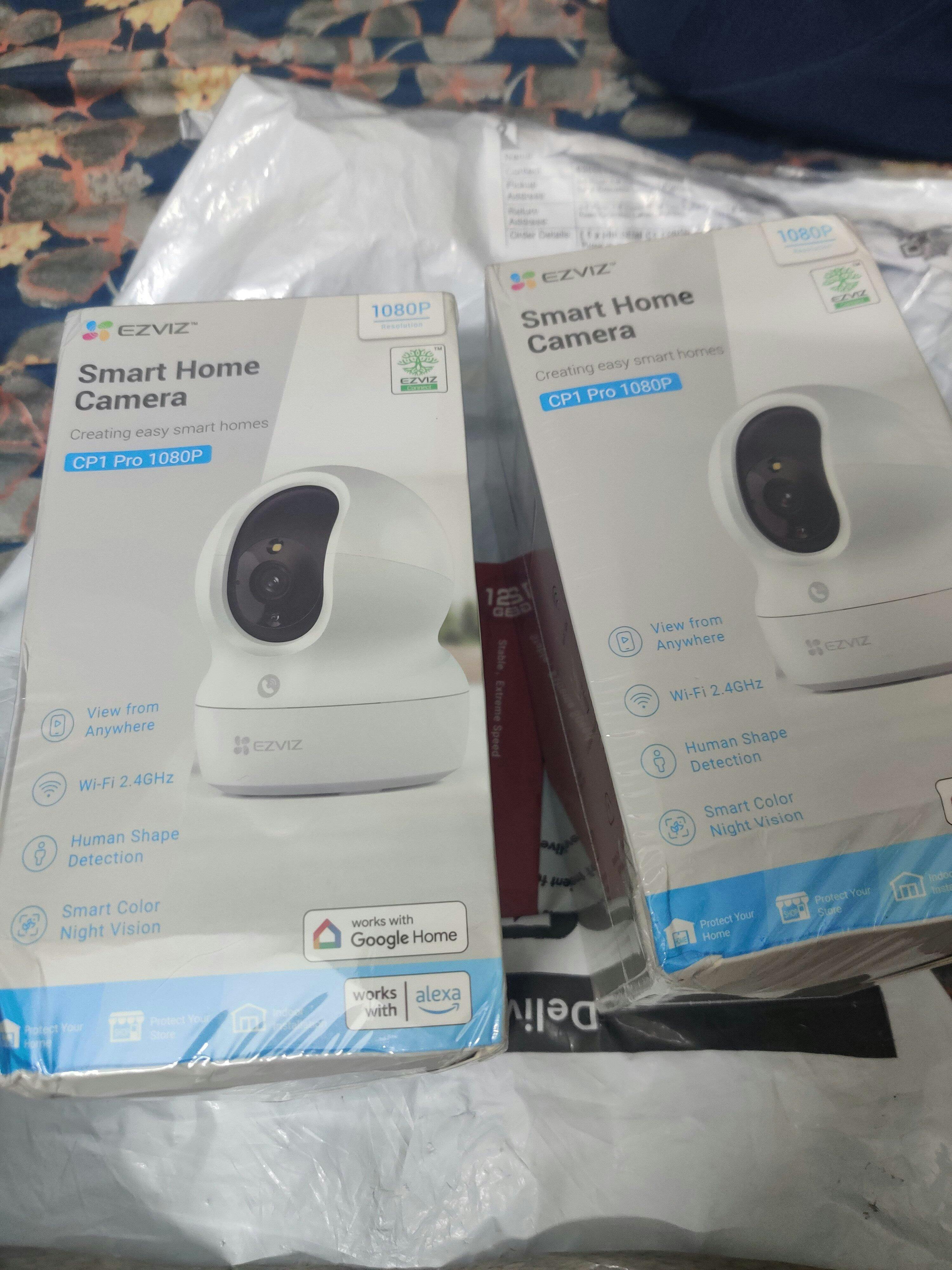

Purchased CP1 Pro for my Indoor requirements. Recommended. EZVIZ doing a great job. FAST Delivery within one day
