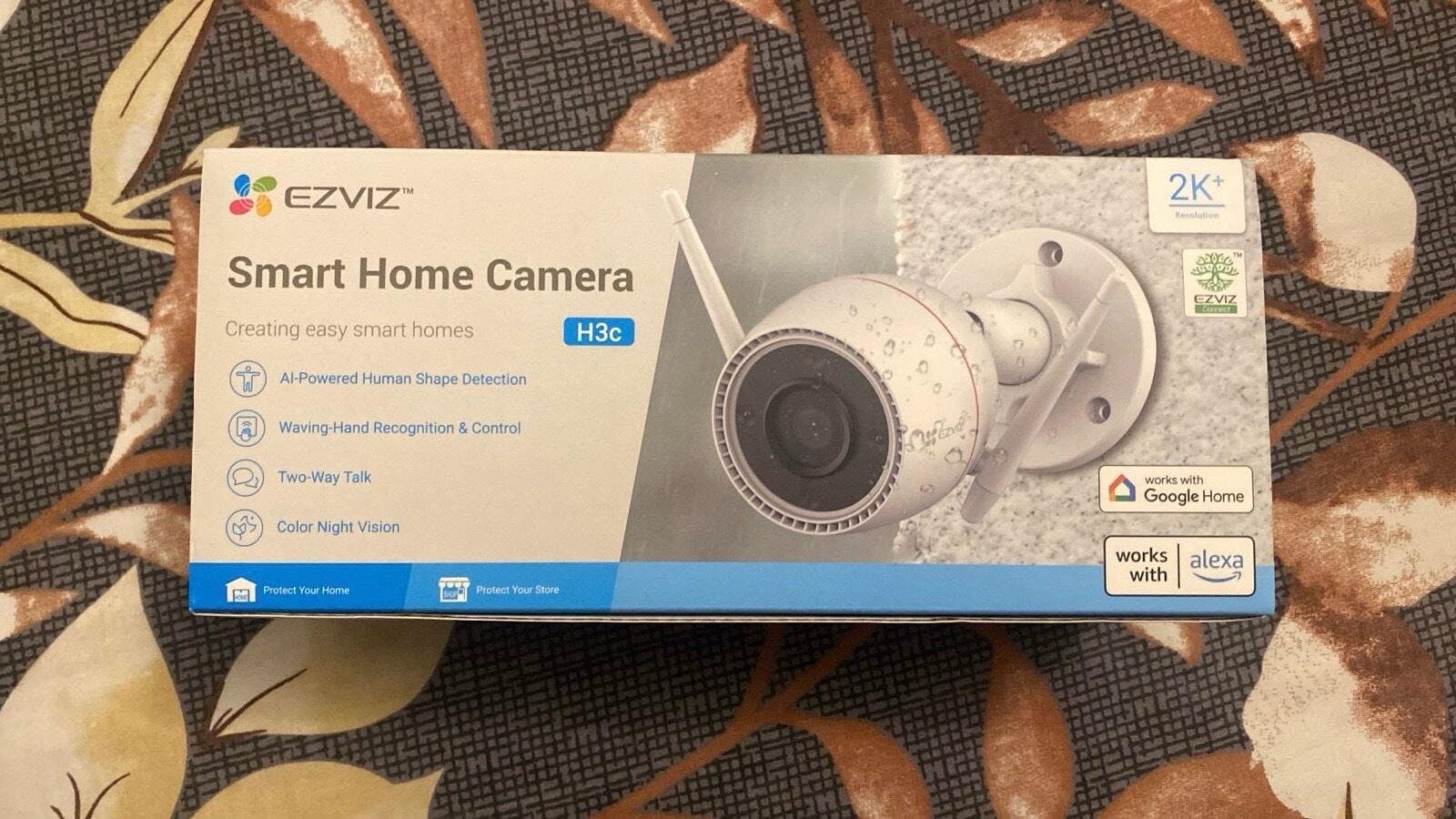

EZVIZ H3c 2K⁺ Wi-Fi Smart Home Camera
EZVIZ H3c 2K⁺
Wi-Fi Smart Home Camera in 2K⁺
| Specifications | |
|---|---|
| Model | CS-H3c-R100-1J4WKFL |
| Camera | |
| Image Sensor | 1/2.7”Progressive Scan CMOS |
| Minimum Illumination | 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| IR Night Vision Distance | Up to 98 ft / 30 m |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm @ F2.0, view angle: 82° (Horizontal), 98° (Diagonal) |
| Lens Mount | M12 |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Day / Night Switch | IR-Cut filter with auto-switching |
| Video & Audio | |
| Max. Resolution | 4MP, 2560 × 1440 |
| Frame Rate | Max: 30fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Quad HD; Hi-Def; Full HD; Standard. Adaptive bit rate |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 4 Mbps |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps |
| Wi-Fi Pairing | AP Pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Function | |
| Detection | Human Shape Detection, Motion Detection Waving-Hand Detection |
| Customized Alert Area | Supports |
| Integration | Works with Alexa, Google Assistant, IFTTT |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD card (Up to 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
| General | |
| Operating Conditions | -30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing) |
| IP Grade | IP67 |
| Power Supply | DC 12V / 1A |
| Power Consumption | MAX. 9W |
| Dimensions | 72 × 72 × 157 mm (2.83 × 2.83 × 5.98 inch) |
| Packaging Dimensions | 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch) |
| Weight(With Package) | 539 g (19.01 oz) |
| Net Weight | 330 g (11.64 oz) |
| In the box | |
| In the box | H3c 2K+ Camera |
| Drill Template | |
| Screw Kit | |
| Waterproof Kit | |
| Power Adapter | |
| Regulatory Information | |
| Quick Start Guide | |
| Certifications | |
| Certifications | CE / FCC / UKCA / UL / WEEE / RoHS / REACH |
