EZVIZ H3c Wi-Fi Smart Home Camera
EZVIZ H3C
Reliable protection simplified
| Specifications | |
|---|---|
| Model | CS-H3c-R100-1K2WF |
| Camera | |
| Image Sensor | 1/2.7”Progressive Scan CMOS |
| Minimum Illumination | 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| IR Night Vision Distance | Up to 98 ft / 30 m |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm @ F2.0, view angle: 82° (Horizontal), 98° (Diagonal) |
| Lens Mount | M12 |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Day / Night Switch | IR-Cut filter with auto-switching |
| Video & Audio | |
| Max. Resolution | 1080p, 1920 × 1080 |
| Frame Rate | Max: 30fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Full HD; HD; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 2 Mbps |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps |
| Wi-Fi Pairing | AP Pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| General | |
| Dimensions | 72mm × 72mm × 157mm (2.83 × 2.83 × 5.98 inch) |
| Package Dimensions | 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch) |
| Weight | Net weight: 250 g (8.82 oz), With Package: 447 g (15.77 oz) |
| IP Grade | IP67 |
| Operating Conditions | -30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing) |
| Function | |
| Detection | AI-Powered Human Shape Detection, Motion Detection |
| Customized Alert Area | Supports |
| Integration | Works with Alexa, Google Assistant, IFTTT |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD card (Up to 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
| Power | |
| Power Supply | DC 12V / 1A |
| Power Consumption | Max. 6W |
| In the box | |
| In the box | - H3c Camera |
| - Drill Template | |
| - Screw Kit | |
| - Waterproof Kit | |
| - Power Adapter | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / FCC / UKCA / UL / WEEE / RoHS / REACH |
5 Reasons To Be Our Customer:
 |
Exceptional Support Our friendly support staff are available all the time to help customers with any questions or concerns. We want our products to deliver the most joy and value with zero hassle. That’s why we insist on being available to assist when the need arises. |
|---|---|
 |
15-Day Easy Return & Refund We are so confident that you will love our products that we offer a 15-day return & refund period. Please read our Return & Refund policy and If you are eligible you can ask for a replacement or refund. |
 |
Quality and Affordable We believe in combining both quality and affordability in our products. There’s no reason to pay exorbitant prices when our products do more for less. You won't find better price to quality ratio. |
 |
Unbeatable Price - Years of experiences gives us uniqe position to work directly with factories to ensure quality control and the best price possible. |
 |
Secure, Easy Ordering - Orders can be placed online using either a credit/debit card or other payment gateways like Jazz Cash & Easy Paisa. All transactions are SSL-secured and guarantee your privacy. |
Customer Reviews

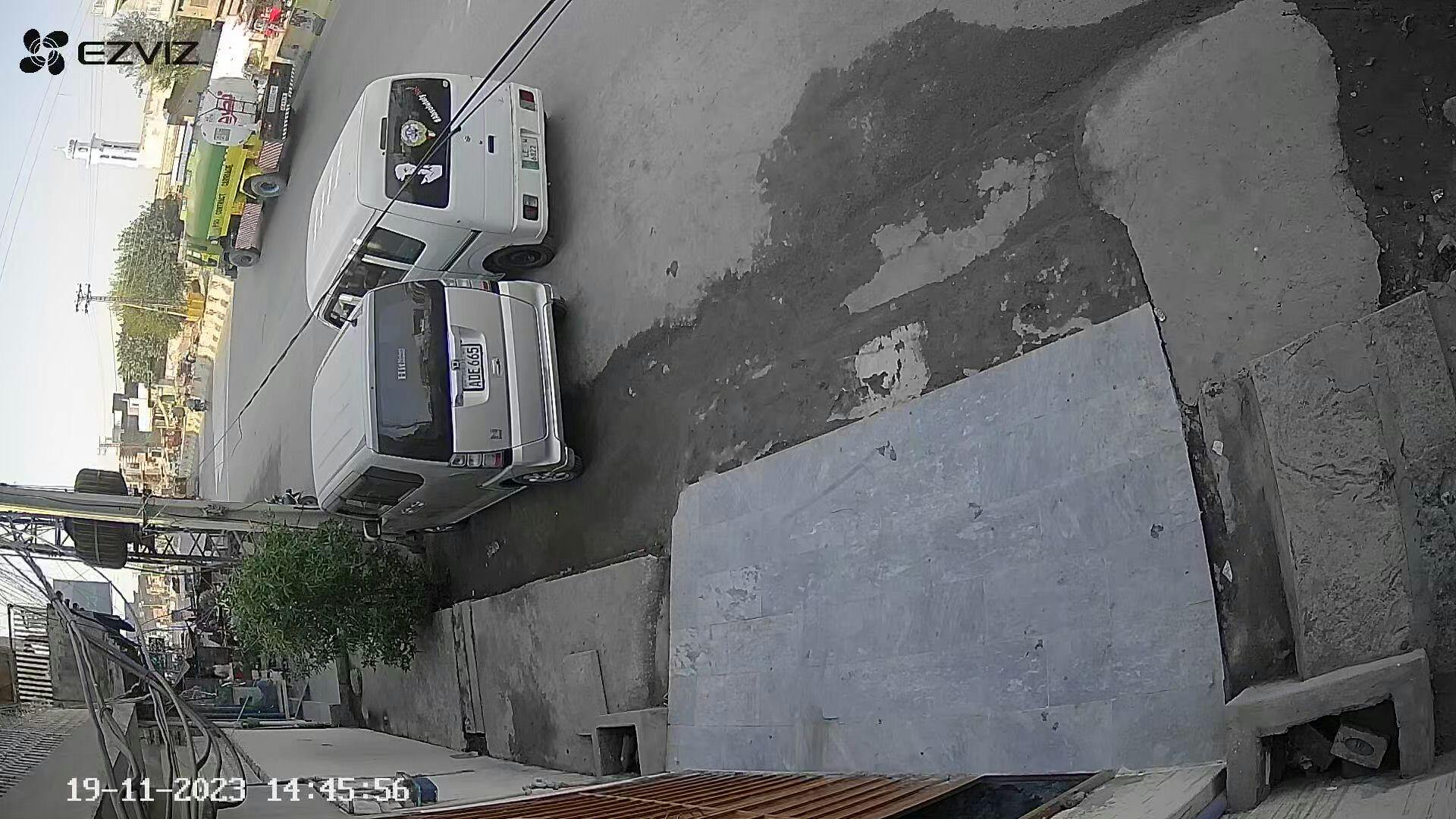

I recently purchased the five camera, and I'm extremely satisfied with its performance. Installation was a breeze, thanks to the user-friendly instructions provided. The picture quality is outstanding, offering crisp and clear footage both during the day and night.
my experience is written below
1. High Definition Clarity: The camera delivers sharp and clear footage in both day and night modes, ensuring excellent visibility.
2. Wide-Angle Coverage: Its wide-angle lens covers a large area, reducing blind spots and providing comprehensive monitoring.
3. Easy Installation: Setting up the camera was hassle-free; the instructions were clear, and the accompanying app simplified the process.
4. Reliable Motion Detection: The motion sensor accurately detects movement, sending prompt alerts to my phone.
5. Sturdy Build: The camera is well-built and weather-resistant, making it suitable for outdoor use.
Sturdy and reliable camera !!
