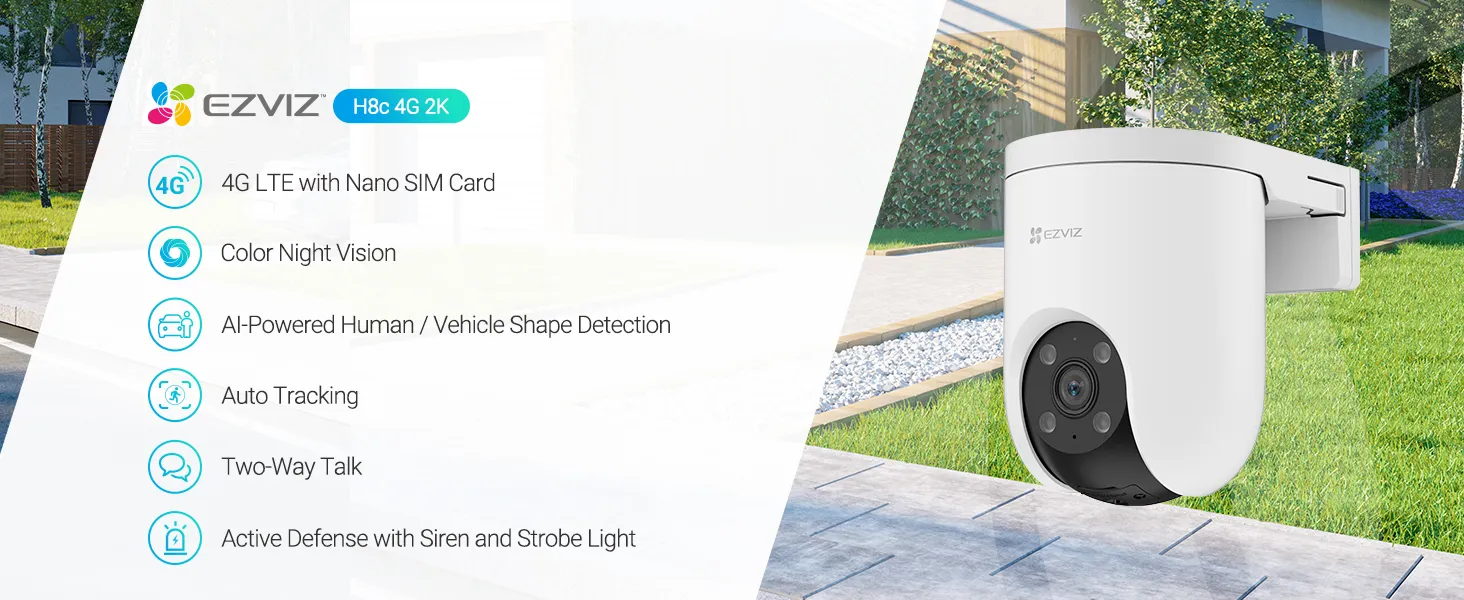

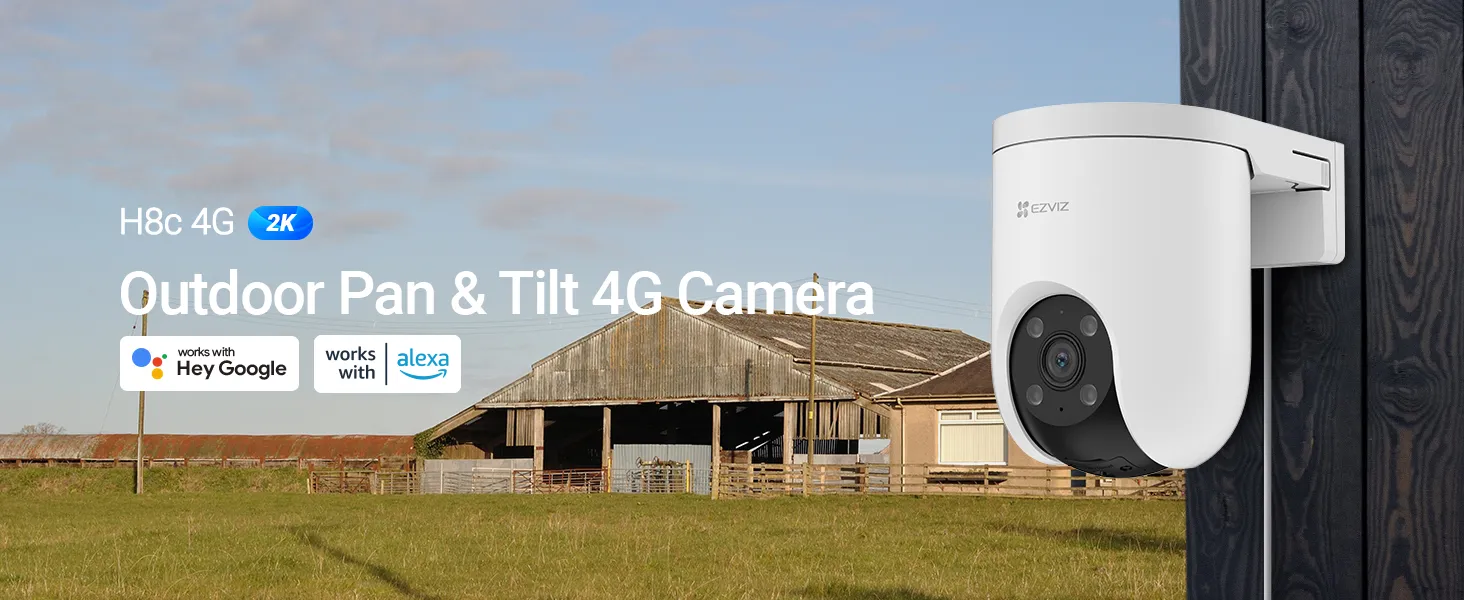

EZVIZ H8c 4G 2K Pan & Tilt 4G Camera
|
Specifications |
|
|
Model |
CS-H8c-R200-1K3KFL4GA |
|
Camera |
|
|
Image Sensor |
1/2.8" Progressive Scan CMOS |
|
Shutter Speed |
Self-adaptive shutter |
|
Lens |
4mm@ F1.6, viewing angle: 46° (Vertical), 86° (Horizontal), 102° (Diagonal) 6mm@ F1.6, viewing angle: 28° (Vertical), 52° (Horizontal), 62° (Diagonal) |
|

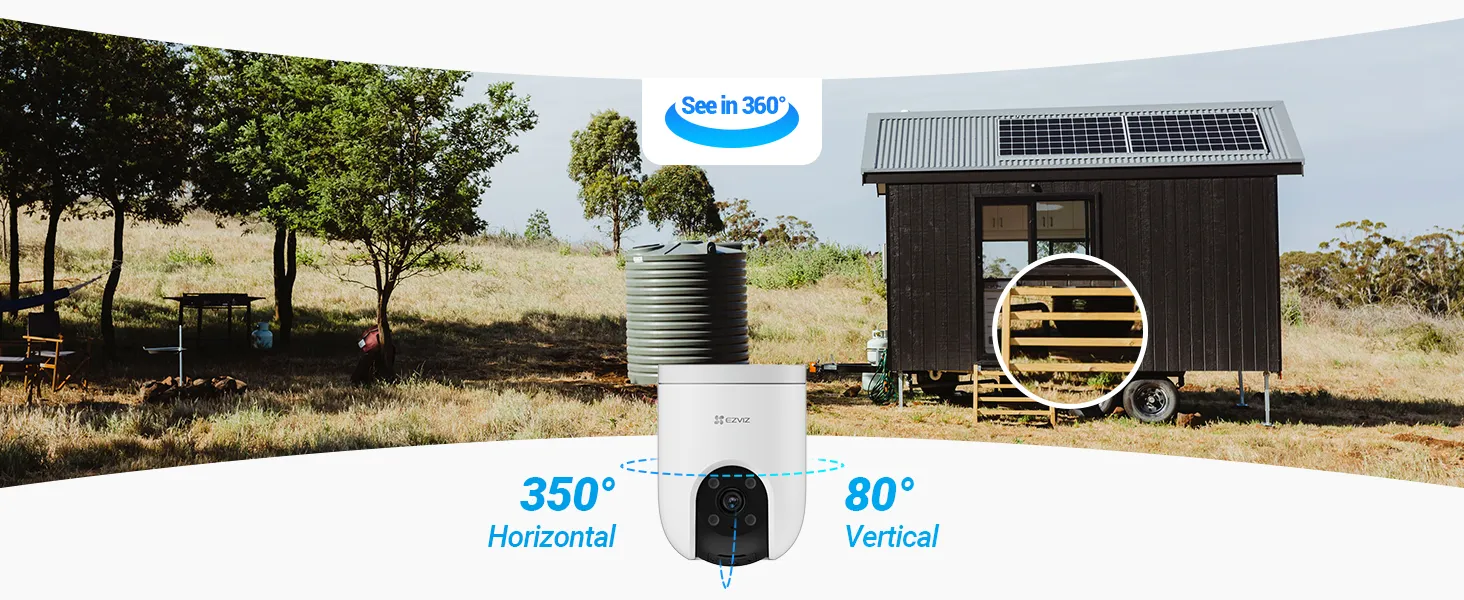

PT Angle |
Pan: 350°, Tilt: 80° |
|
Minimum Illumination |
0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) |
|
Lens Mount |
M12 |
|
DNR |
3D DNR |
|
WDR |
Digital WDR |
|
Black & White Night |
30m / 98ft |
|
Video & Audio |
|
|
Max Resolution |
2304 × 1296 |
|
Frame Rate |
Max:30fps; Self-Adaptive during network transmission |
|
Video Compression |
H.265 / H.264 |
|
H.265 Type |
Main Profile |
|
Video Bit Rate |
Ultra-HD; Hi-Def; Standard. Adaptive bit rate. |
|
Audio Bit Rate |
Self-Adaptive |
|
Max. Bitrate |
3 Mbps |
|
Network |
|
|
Frequency Bands |
IN LTE-FDD：B1/B3/B5/B8 IN LTE-TDD：B34/B38/B39/B40/B41 EU LTE-FDD：B1/B3/B5/B7/B8/B20/B28 LA LTE-FDD：B2/B3/B4/B5/B7/B8/B28/B66 |
|
Wired Network |
RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
|
Functions |
|
|
Smart Alarm |
Human Motion Detection,Vehicle Detection |
|
Auto Tracking |
Supports |
|
Customized Alert Area |
Supports |
|
Two-way Talk |
Supports |
|

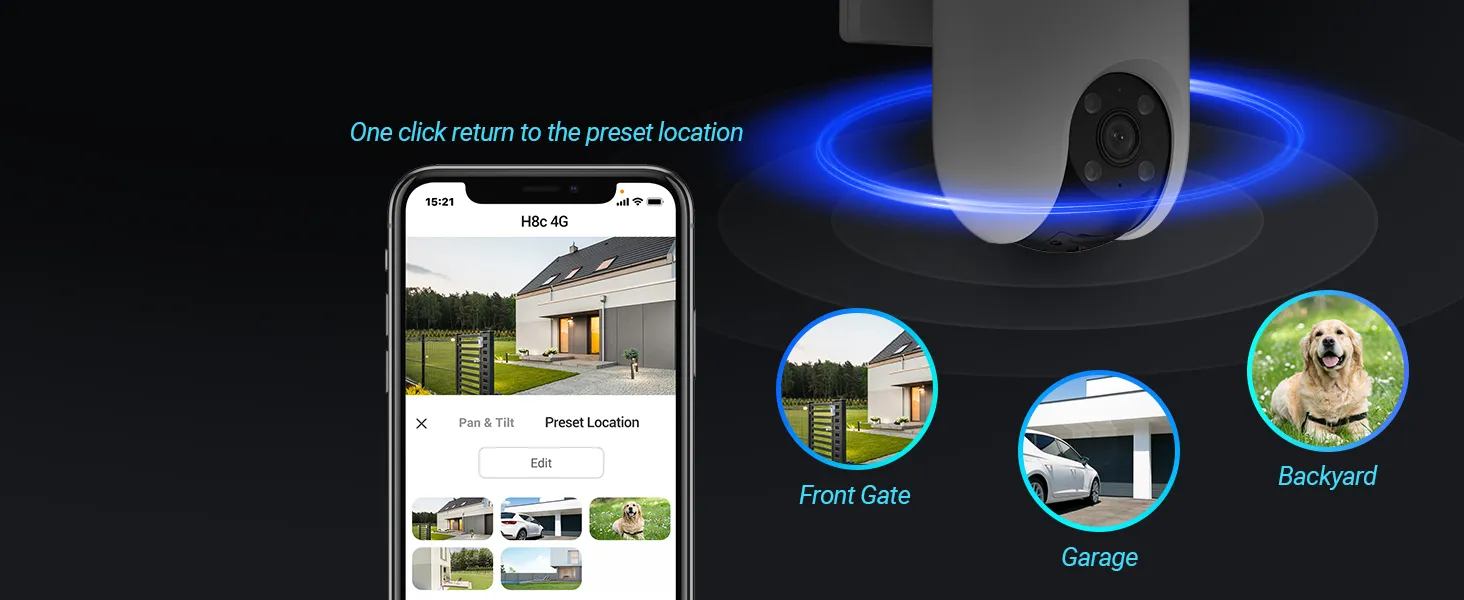

Preset Locations |
Supports |
|
General Function |
Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
|
Storage |
|
|
Local Storage |
Supports microSD Card (Up to 512 GB) |
|
Cloud Storage |
Supports EZVIZ CloudPlay storage (Subscription required) |
|
General |
|
|
Operating Conditions |
-30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing) |
|
IP Grade |
Weatherproof Design |
|
Power Supply |
DC 12V/1A |
|
Dimensions |
100 × 136 × 140mm (3.94 × 5.35 × 5.51 inch) |
|
Packaging Dimensions |
140 × 140 × 192mm (5.51 × 5.51 × 7.56 inch) |
|
Weight |
Net Weight: 513.8 g (18.12 oz) With Package: 796.7 g (28.1 oz) For EU Standard Version |
|
In the box |
|
|
In the box |
- H8c 4G Camera |
|
- Drill Template |
|
|
- Screw Kit |
|
|
- Waterproof Kit |
|
|
- Power Adapter |
|
|
- Regulatory Information |
|
|
- Quick Start Guide |
|
|
Certifications |
|
|
Certifications |
CE / WEEE / RoHS / REACH |
