X5S 4W Wireless NVR

PKR 24,800 PKR 14,999 SAVE PKR 9,801
In Stock Pre order Out of stock
  1. EZVIZ CS-X5S-R100-4W (4-Channel Wireless/Wired NVR
  2. HDMI & VGA Output
  3. Supports High-Resolution Cameras up to 3K Video Quality
  4. 3K × 4 IPC Access Capability
  5. Wi-Fi Range: Up to 100m (300 ft)
  6. Supports ONVIF-Conformant Cameras
  7. H.265 Video Compression Technology
  8. One 10/100M Adaptable Ethernet
    Interface
  9. One Built-in SATA Port (Supports
    1TB to 8TB 3.5-inch HDD)
  10. USB 2.0
    Interface
  11. Power Supply: 12V / 1.5A
  12.

Overview

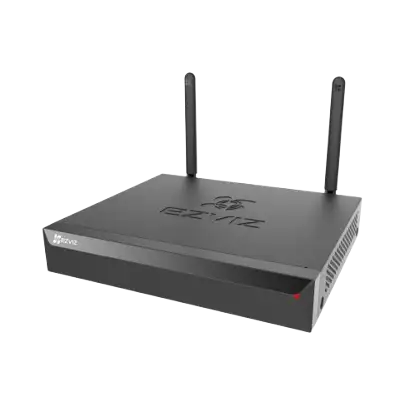

X5S
Wireless NVR with HDMI & VGA Outputs

Reliable, easy storage for your security system

The X5S is a large-capacity storage solution tailored to support multi-camera security systems for 24/7 recording in even high video quality. Users can confidently save and keep important footages on the local NVR device, which ensures smooth storage and strict data protection.

Specifications

Model

CS-X5S-R100-4W

IPC Access Capability

Wireless/Wired IPC Access Capability

3K *4

Wired IPC Access Capability

3K *4 (X5S-4W)

Network Parameters

Antenna Number

2

Max Wireless Range

100m

Radio Frequency

2.4G

Ethernet Port

One 10/100M adaptable Ethernet interface

Required Access Bandwidth

50 Mbps/100 Mbps

Video Output

VGA

1 channel (identical to HDMI output) resolution up to 1920*1080/60Hz

HDMI

1 channel resolution up to 2592*1944/30HZ

Audio/Video Codec

Recording Resolution

3K / 2K+ / 2K / 1080p / UXGA / 720p / VGA / 4CIF / 2CIF / CIF / QCIF

Video Encoding

H.265, H.264

Decode Playback

Supports 4*3K

Video Recording Management

Video Recording Mode

Manual video recording; Motion detection recording; Scheduled video recording; Event triggered recording

Backup Mode

Hard disk backup, Internet application backup

Playback Mode

Instant playback; Normal playback; Event playback; Tag playback; Log event playback

Open Protocol

Open Protocol Support

HIKVISION, ONVIF (V.2.5)

HDD

Interface Type

One built-in SATA port

Capability

Supports 1TB to 8TB 3.5-inch HDD

External Interface

Audio Input/ Output

Not support

Hardware Reset

Supports

USB2.0 Interface

2

Dimensions

Product Dimensions

235 × 270 × 44.5 mm (9.25 × 10.6 × 1.75 inch)

Packaging Dimensions

387 × 362 × 75 mm (15.2 × 14.3 × 3 inch)

Power Supply

DC

12V/1.5A

Key Features

HDMI/VGA Output

Supports High-Resolution Cameras of Up to 3K Video Quality

Wi-Fi Range Up to 100 m (300 ft)

Supports ONVIF Conformant Camera

H.265 Video Technology¹

Up to 8TB Storage²


A reliable center for your important footages


The X5S NVR is designed to manage large-scale videos generated from security needs. In addition to a storage capacity that can be expanded to 8TB², the X5S also receives data and video files from up to 8 connected Wi-Fi cameras³ at the same time.



No detail is overlooked

Connecting the X5S to an additional monitor offers even more convenience for multi-camera viewing – the user can display the footages collected by all connected cameras simultaneously on one screen. It supports up to 3K resolution for live or history videos, so you’ll hardly miss a thing.



Use H.265 to store and play large files efficiently

The X5S uses the H.265 video technology to compress high-resolution video files while maintaining the same video quality and smooth viewing experience for playbacks. You won’t have to worry about large video files taking up too much of your storage space or being too big to load fast – the H.265 technology reduces their sizes by up to 50%¹ and requires only 50% of the bandwidth when compared to H.264.


50%

Video Storage Space

50%

Required Bandwidth
